Performing Point-In-Time Recovery for a Pluggable Database


    Introduction

    A database point-in-time recovery (DBPITR) is sometimes referred to as an incomplete recovery. This recovery capability is suitable for the following situations:
    • A user error or corruption removes needed data or introduces corrupted data. For example, a user or DBA erroneously deletes or updates the contents of one or more tables, drops database objects that are still needed during an update to an application, or runs a large batch update that fails midway.
    • A database upgrade fails or an upgrade script goes awry.
    • A complete database recovery after a media failure cannot succeed because you do not have all of the needed redo logs or incremental backups.
    Here are the DBPITR requirements:
    • Your database must be running in ARCHIVELOG mode.
    • You must have backups of all data files before the target SCN for DBPITR.
    • You must have archived redo logs between the SCN of the backups and the target SCN.

    Scenario

    you use Oracle RMAN to perform a point-in-time recovery on a PDB. You make some erroneous data updates and then recover the database to the state it was just before you performed the data updates.

    Prerequisites


    • Ensure that you have enough disk space to hold a complete backup copy of the CDB, including all of the PDBs.
    • Install Oracle Database 12c.
    • Create one CDB with two PDBs in it.
    The environment used in the development of this tutorial is as follows:
    • ORACLE_HOME: /u01/app/oracle/product/12.1.0
    • TNS Listener port: 1521
    • Container databases:
      • SID: cdb1
      • SID: cdb2
    • Pluggable databases (in cdb1):
      • pdb1
      • pdb2


Preparing to Back Up the CDB

    Before backing up the database, you must create the backup directory and then put the database in ARCHIVELOG mode.


    Creating a Backup Directory

      Navigate to /stage or wherever you can find enough available space to store the backup files.
      cd /stage
      Create a subdirectory called db_backup_files under /stage.

      mkdir db_backup_files
      Create a subdirectory called cdb1 under /stage/db_backup_files.

      cd db_backup_files
      mkdir cdb1

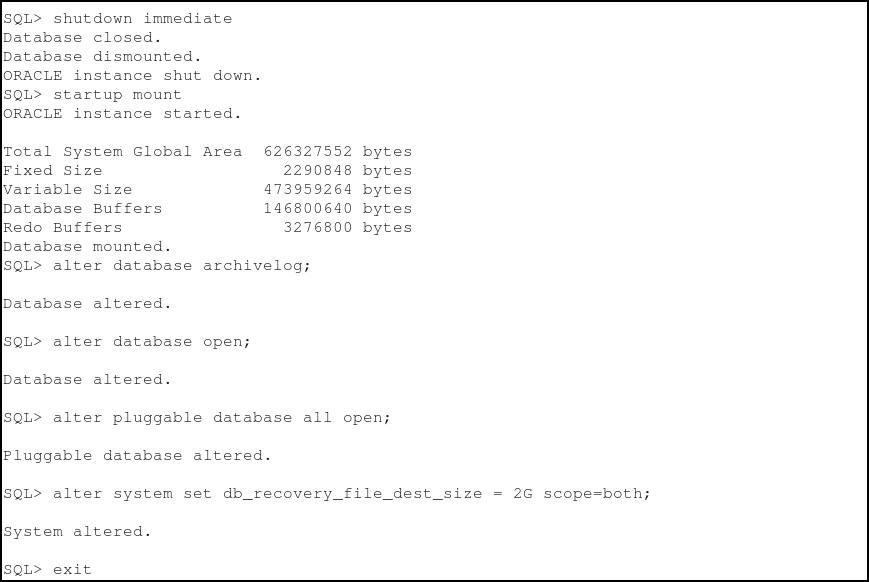

    Placing the CDB in ARCHIVELOG Mode

      In SQL*Plus, connect as sysdba to the cdb1 container database.
      . oraenv
      [enter cdb1 at the prompt]
      sqlplus / as sysdba
      Shut down the database.
      shutdown immediate
      Start the database in mount mode.
      startup mount
      Turn on database archiving.
      alter database archivelog;
      Open the CDB.
      alter database open;
      Open all of the PDBs.
      alter pluggable database all open;
      Set the Flash Recovery Area (FRA) size.
      alter system set db_recovery_file_dest_size = 2G scope=both;
      exit


Backing Up the CDB

    Use Oracle RMAN to back up the database to the directory that was specified in the previous section.
    Perform the following steps in a new terminal window:
    1. Set the NLS_DATE_FORMAT environment variable so that the date and time values displayed by RMAN can be more easily read.
    2. Make sure that ORACLE_HOME is set correctly.
    3. Set ORACLE_SID to cdb1.
    export NLS_DATE_FORMAT='DD-MM-YYYY HH:MI:SS'
    Connect to Oracle RMAN.
    rman target /

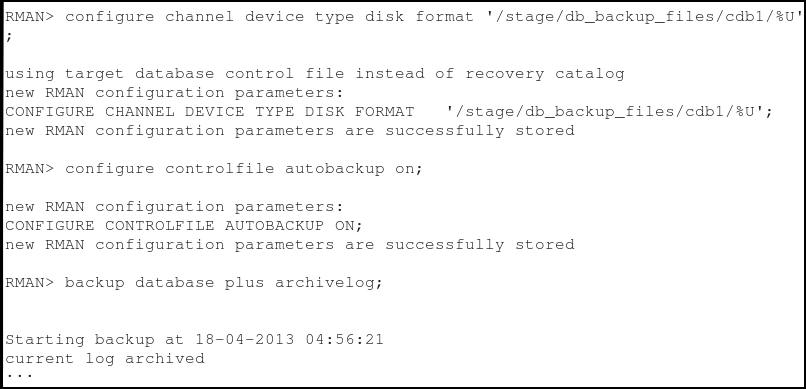

    Set the Oracle RMAN backup device type and backup file location.
    configure channel device type disk format '/stage/db_backup_files/cdb1/%U';
    Turn on automatic backup of control files.
    configure controlfile autobackup on;
    Back up the database and archive logs.
    backup database plus archivelog;
    exit

    Note: The output is truncated for readability.


Performing Erroneous Updates in the PDB

    In this section, you set up a tablespace, schema, and table in each PDBs. Next, you insert some records in the tables. One of the batch inserts will be done "in error."

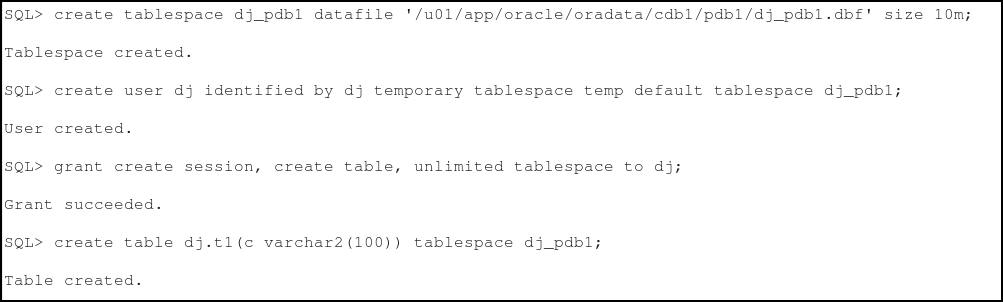

    Creating a Tablespace, Schema, and Table in PDB1

      In SQL*Plus, connect to pdb1 as sysdba
      sqlplus sys/oracle@localhost:1521/pdb1 as sysdba
      Create a small tablespace where a small table will be stored.
      create tablespace dj_pdb1 datafile '/u01/app/oracle/oradata/cdb1/pdb1/dj_pdb1.dbf' size 10m;
      Create a schema that will own the table.
      create user dj identified by dj temporary tablespace temp default tablespace dj_pdb1;
      Grant the schema the necessary privileges.
      grant create session, create table, unlimited tablespace to dj;
      Create the table in the schema.
      create table dj.t1(c varchar2(100)) tablespace dj_pdb1;

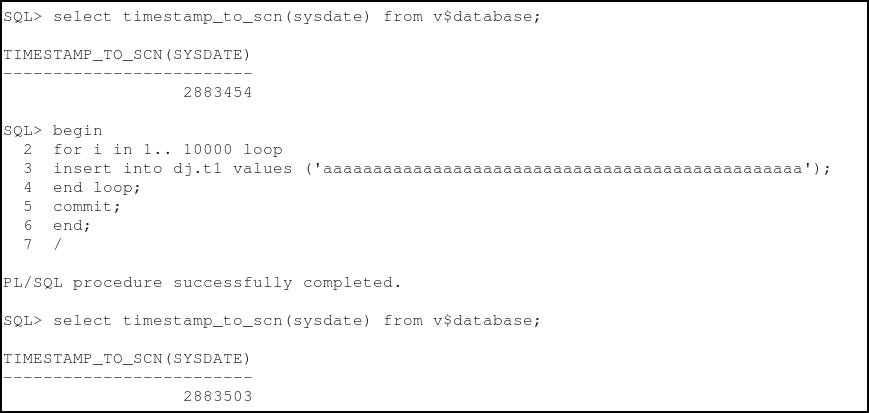

    Performing Data Updates in PDB1

      Make a note of the current SCN.
      select timestamp_to_scn(sysdate) from v$database;
      Insert data in the table.
      begin
       for i in 1.. 10000 loop
          insert into dj.t1 values ('aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa');
       end loop;
       commit;
      end;
      /
      Make a note of the SCN and remain in SQL*Plus.
      select timestamp_to_scn(sysdate) from v$database;

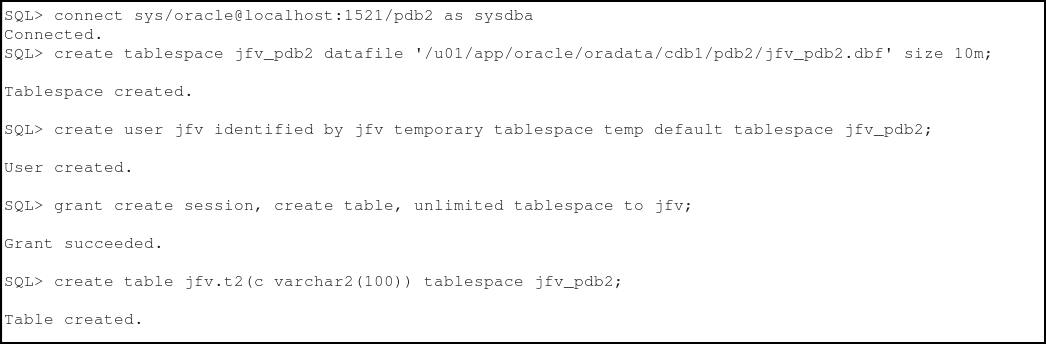

    Creating a Tablespace, Schema, and Table in PDB2

      In SQL*Plus, connect to pdb2 as sysdba.
      connect sys/oracle@localhost:1521/pdb2 as sysdba
      Create a small tablespace where a small table will be stored.
      create tablespace jfv_pdb2 datafile '/u01/app/oracle/oradata/cdb1/pdb2/jfv_pdb2.dbf' size 10m;
      Create a schema that will own the table.
      create user jfv identified by jfv temporary tablespace temp default tablespace jfv_pdb2;
      Grant the schema the necessary privileges.
      grant create session, create table, unlimited tablespace to jfv;
      Create the table in the schema.
      create table jfv.t2(c varchar2(100)) tablespace jfv_pdb2;

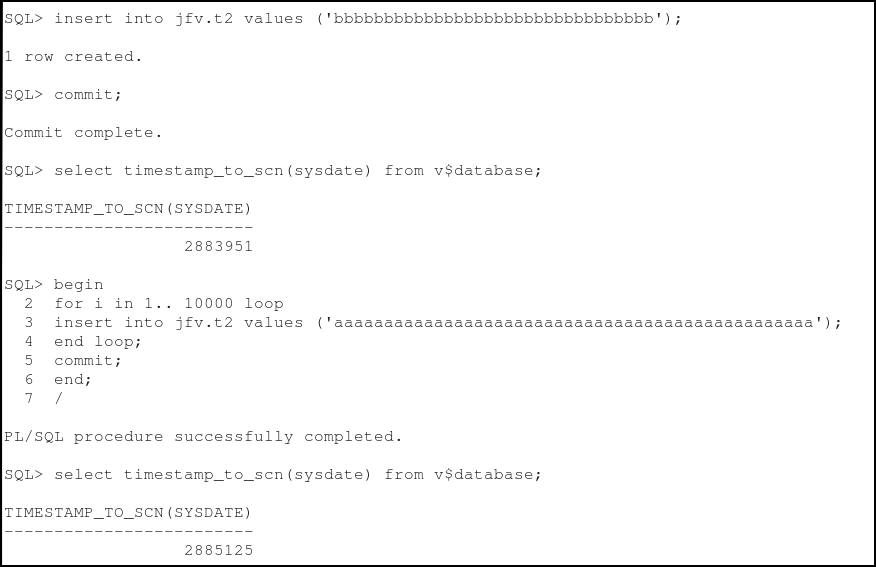

    Performing Data Updates in PDB2

      Insert a row in the table and commit the transaction.
      insert into jfv.t2 values ('bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb');
      commit;
      Make a note of the current SCN, which is the point to which you will recover the database.
      select timestamp_to_scn(sysdate) from v$database;
      Insert 10,000 more rows into the table.
      begin
       for i in 1.. 10000 loop
          insert into jfv.t2 values ('aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa');
       end loop;
       commit;
      end;
      /
      Make a note of the SCN.
      select timestamp_to_scn(sysdate) from v$database;
    Oh no! The insert should not have been done in PDB2! You need to perform a point-in-time recovery.


Recovering the PDB to a Certain Point in Time

    To perform point-in-time recovery, you must first close the PDB. Use Oracle RMAN to recover until the SCN before the erroneous data updates to the table in PDB2.
    Close the pdb2 pluggable database and exit SQL*Plus.
    alter pluggable database pdb2 close;
    exit
    Connect to Oracle RMAN.
    rman target /

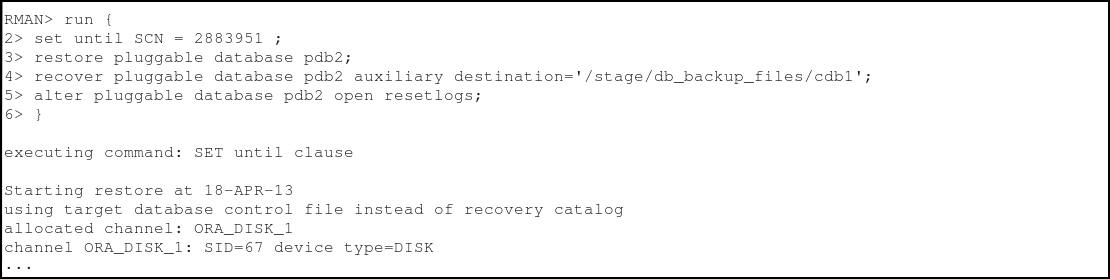

    Perform point-in-time recovery in Oracle RMAN.
    Make sure that you change the SET UNTIL SCN value to the SCN that you recorded in step #1 in the "Performing Data Updates in PDB2" section. Also, set the AUXILIARY DESTINATION value to a location with enough free space to hold a copy of the database files.
    run {
    set until SCN = 2263440 ;
    restore pluggable database pdb2;
    recover pluggable database pdb2 auxiliary destination='/stage/db_backup_files/cdb1';
    alter pluggable database pdb2 open resetlogs;
    }

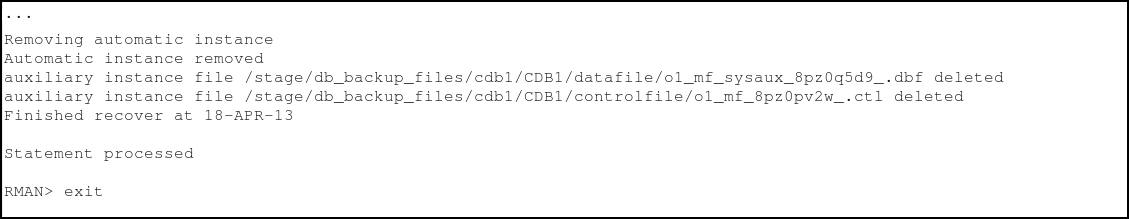

    Exit Oracle RMAN.
    exit
    Note: The output is truncated for readability.

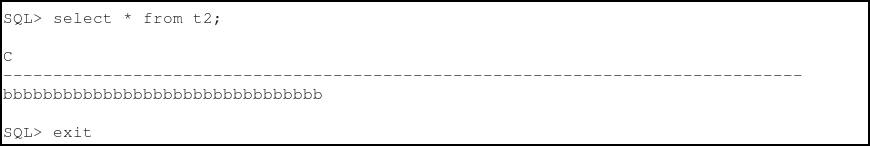

Verifying Success of the Point-In-Time Recovery

    If the point-in-time recovery was successful, you should see only one row in the jfv.t2 table.
    In SQL*Plus, connect to PDB2.
    sqlplus jfv/jfv@localhost:1521/pdb2
    Check to see that  the table contains only the one row inserted before the 10,000 record batch insert.
    select * from t2;
    exit


Resetting Your Environment

    Perform the following steps to reset your environment prior to repeating the activities covered in this OBE or starting another OBE.
    Remove the jfv user and jfv_pdb2 tablespace from pdb2 .
    . oraenv

    [enter cdb2 at the prompt]
    sqlplus sys/oracle@localhost:1521/pdb2 as sysdba

    drop user jfv cascade;
    drop tablespace jfv_pdb2 including contents;
    Remove the dj user and dj_pdb1 tablespace from pdb1.
    connect sys/oracle@localhost:1521/pdb1 as sysdba
    drop user dj cascade;
    drop tablespace dj_pdb1 including contents;
    Take the database out of ARCHIVELOG mode .
    connect / as sysdba
    shutdown immediate
    startup mount
    alter database noarchivelog;
    alter database open;
    alter pluggable database all open;
    exit
    Remove the backup files.
    rm -rf /stage/db_backup_files
